RV2 series

'RV2 series'' is the most compact type in vacuum regulator.It has almost same characteristic as ''RV series'' in the area with low pressure and small flow rate.

RV2 series

Features

■''RV2 series'' is super compact, very low-profile and requires a little space to install. Best to install in the apparatuses in saved space and available to mount both panel and brackets. ■Excellent pressure characteristics of ''RV series'' allow this regulator accurate negative pressure.
■The small air-leakage by direct acting restricts air-leakage and loss of energy from supply pressure, and ensure controlling pressure without bleeding.
■Available for special specification. Parts for clean room are stainless-steel, fluoric rubber, and other parts are electroless nickel plated.

Applications

■''RV2 series'' is ideal for applications requiring excellent pressure characteristics while saving space.

Application

more

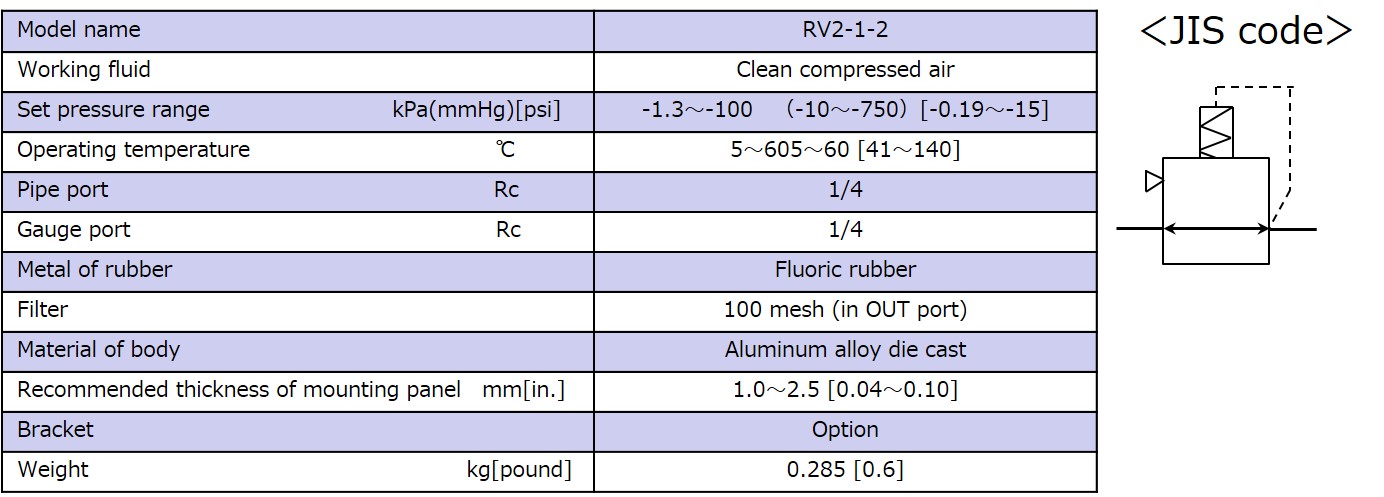

Specifications

Specifications

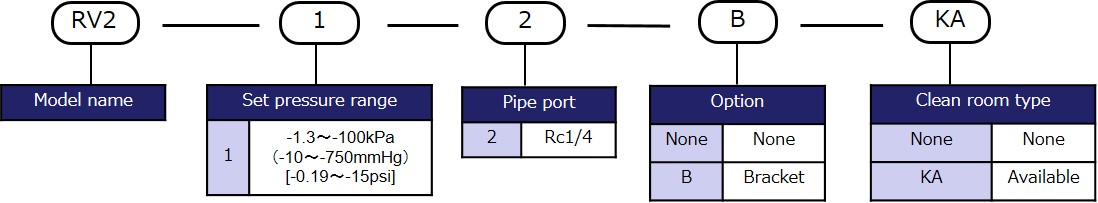

Model designation

Model designation

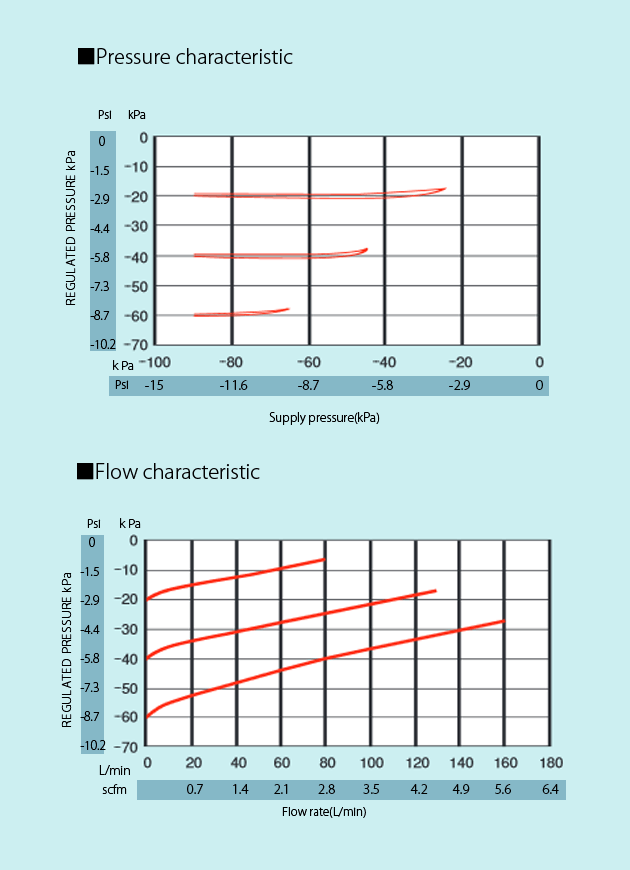

Characteristic


Characteristic

Model designation

Model designation
