RV・S series

’RV.S series'' has high accuracy of pressure as vacuum regulator. Direct acting type allows little air leakage, and an efficient controlling of pressure from primary side.
Pipe port size:1/4

RV・S series

Features

■Available to control degree of vacuum with high accuracy at sensibility 0.13kPa(1mmHg)[0.019psi], repeatability 0.3kPa(±2.2mmHg)[0.044psi] or under.
■Output pressure is almost not affected (within 0.5% F.S) by. supply pressure variation.
■Applicable for use with large flow because of its maximum flow rate 270/min (normal)[9.5scfm].
■This regulator responds sensitively against regulated pressure variations.

Applications

■''RV.S series'' is ideal for applications requiring high precision, high flow rate vacuum control.

Application

more

Specifications

Specifications

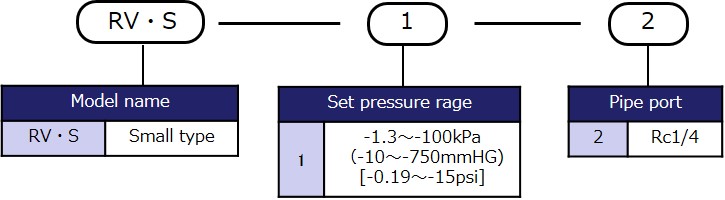

Model designation

Model designation

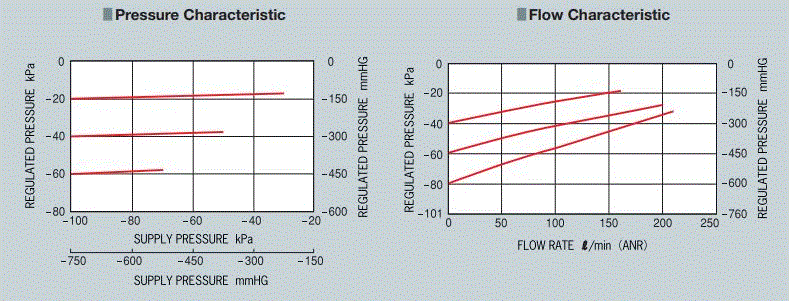

Characteristic


Characteristic

Model designation

Model designation
