RB series

Compact general-purpose regulator that can be easily operated.

RB series

Features

The small regulator ''RB series'' also supports large flow rates and can be fixed with a manifold. Furthermore, this push-locking type makes it easy to set the pressure.
■Compact and light(130g[0.3pound])

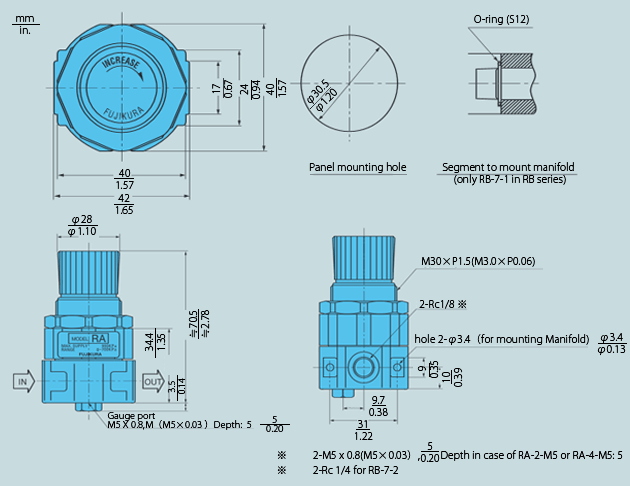

■Figures are also available for mounting manifold.
■Repeatability ±0.3~1.0%F.S.
■Excellent in pressure and flow characteristics.
■Bush-lock type knob.
■Correspond to a clean room by custom order.

Applications

■It is suitable for applications requiring small size and flow rate.

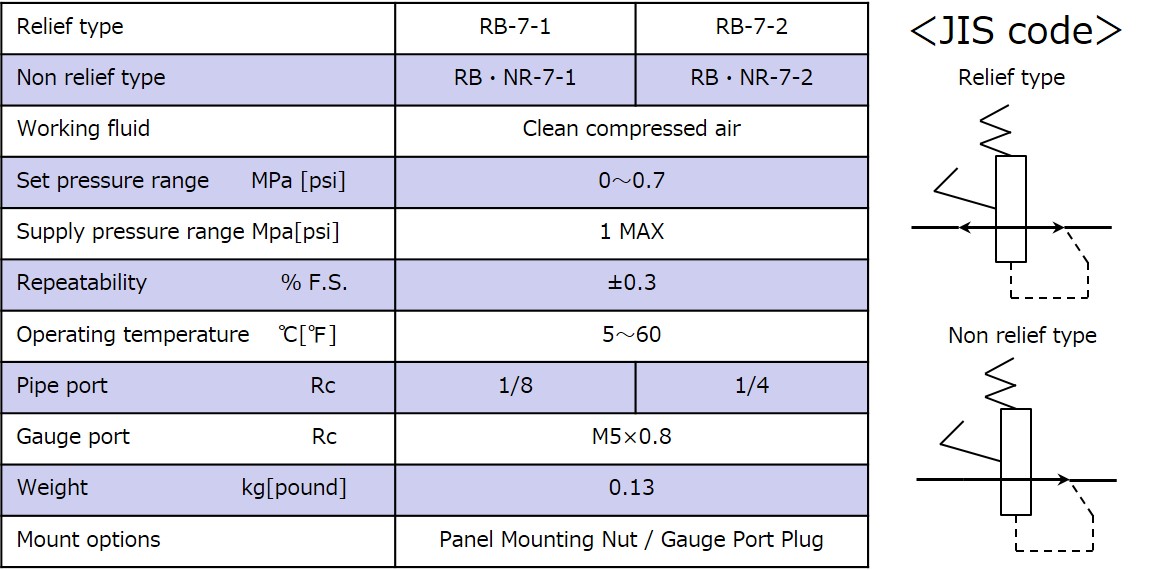

Specifications

Specifications

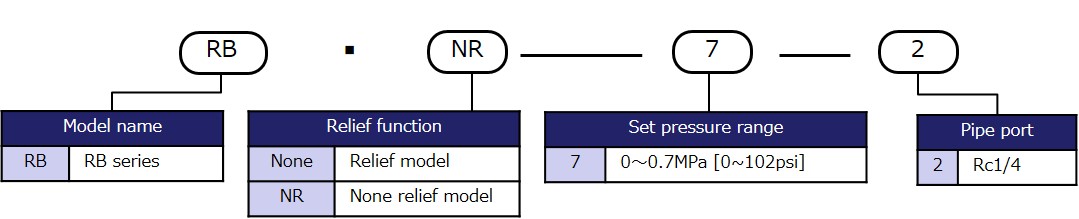

Model designation

Model designation

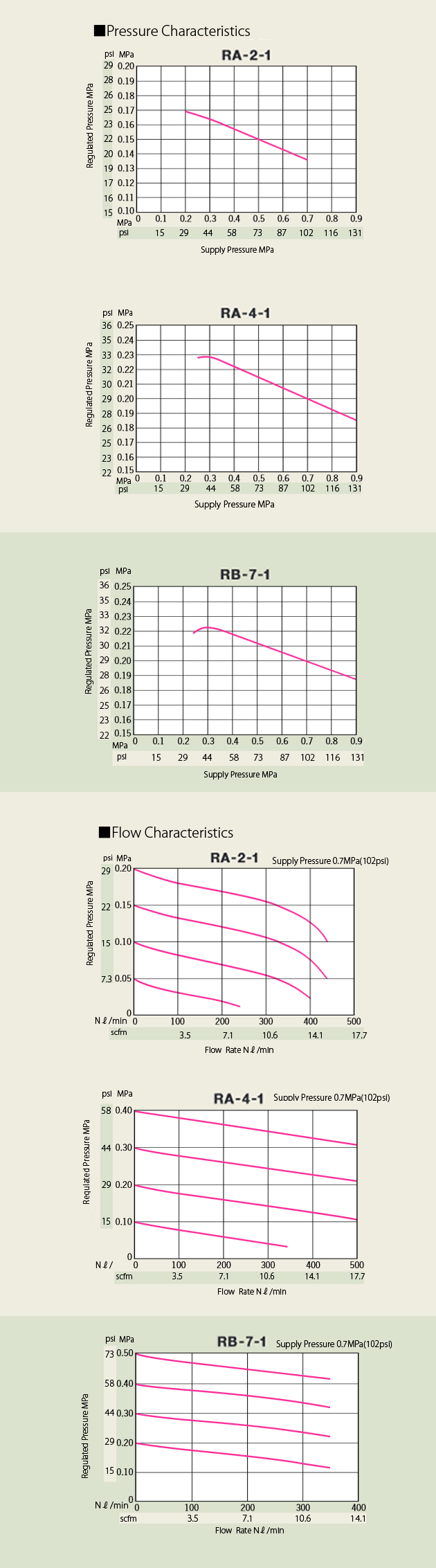

Characteristic


Characteristic

Model designation

Model designation
