RR series for cleanroom

RR-KA series'' are air relay regulators for clean room, and servo-balanced system comprising rolling diaphragm and measuring capsule provides exceptionally precise pressure control.

Clean room

Catalog
Contact us

Features

■The parts are made of stainless materials and fluoric rubber, and the other parts are all electroless nickel plated so that very little dust is caused.
■Manifold pipe fitting is available.
■Exhaust relief air and bleed air out of clean room is available to exhaust by connecting exhaust pipe to relief port and bleed port.

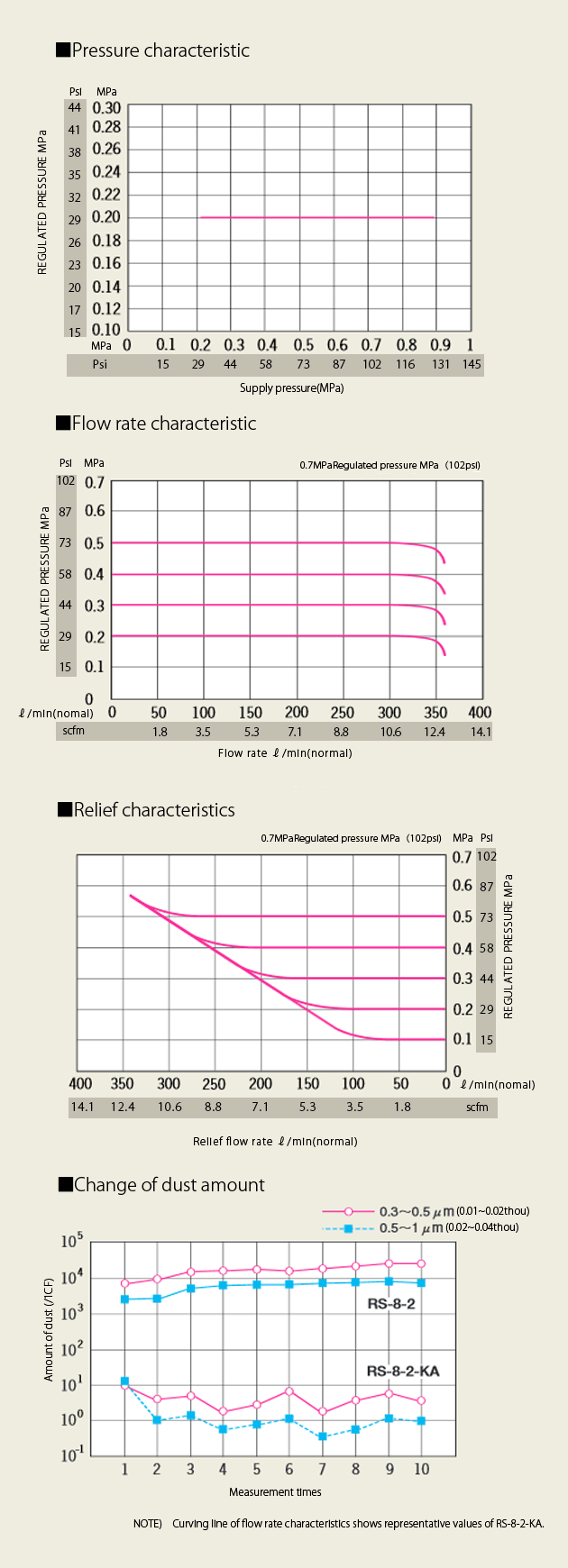

■Highly accurate pressure control with sensitivity 0.1%F.S. repeatability ±0.1%F.S.
