SC series

Linear ball bearings is adopted for bearings.

Features

■SC Series have linear ball bearings in it, and the same size and structures with FC Series so that it takes the best advantages of the features of BF diaphragms.
■Good responsivity to pressure variations.
■Actuation by a very low pressure
■The friction when a lateral load is applied becomes smaller than FC series.

Applications

BF Cylinders find its best applications as the actuators as follows..
■Actuating exact control at low pressure.
■Controlling contact pressure of apparatuses for fiber and metal works.
■Tension control of printing machines and plastic productive facilities.
■Press control of polishing equipments and testing machines

Application

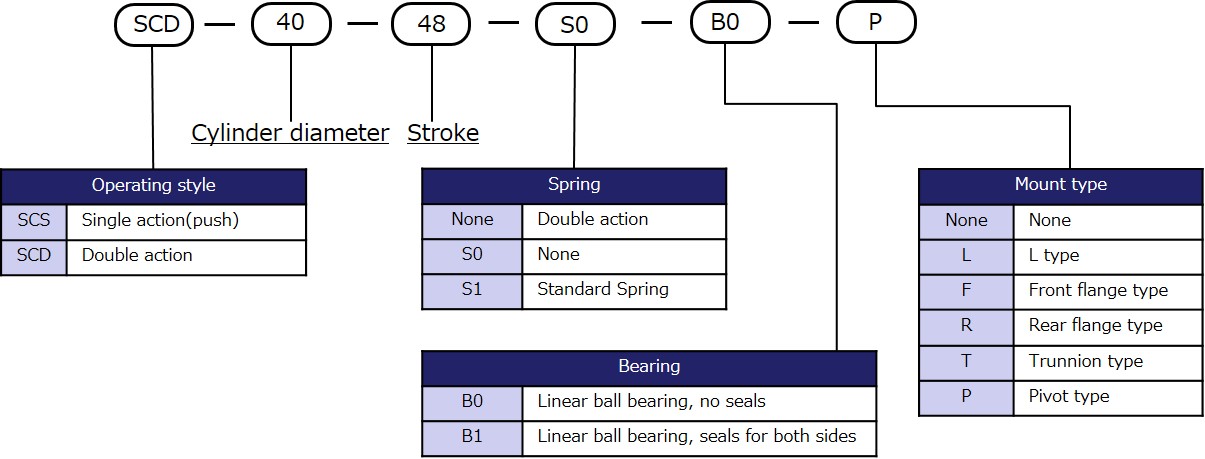

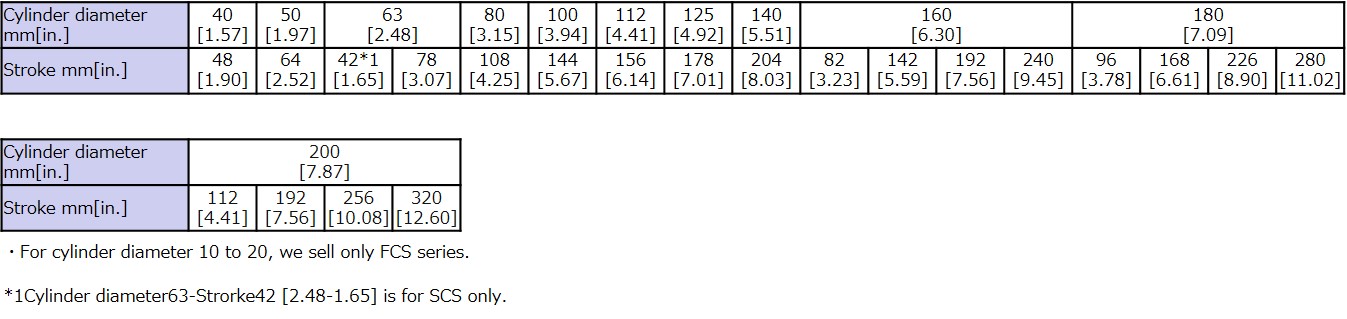

Specifications

Features of BF diaphragm

■Perfect Leak-proof.
■Virtually no hysteresis-loss in smooth movement by rolling action.
■Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
■Smooth movement at low speed.
■No lubricator required.
■Steady working pressure range at any strokes and steady output pressure.
■Available to change materials and to adapt to specific circumstances or forms.
